Complete Door, Frame & Architrave, Handle, Latch Mechanism, Strike Plate & Hinges (functional with animation) - Blender 2.93

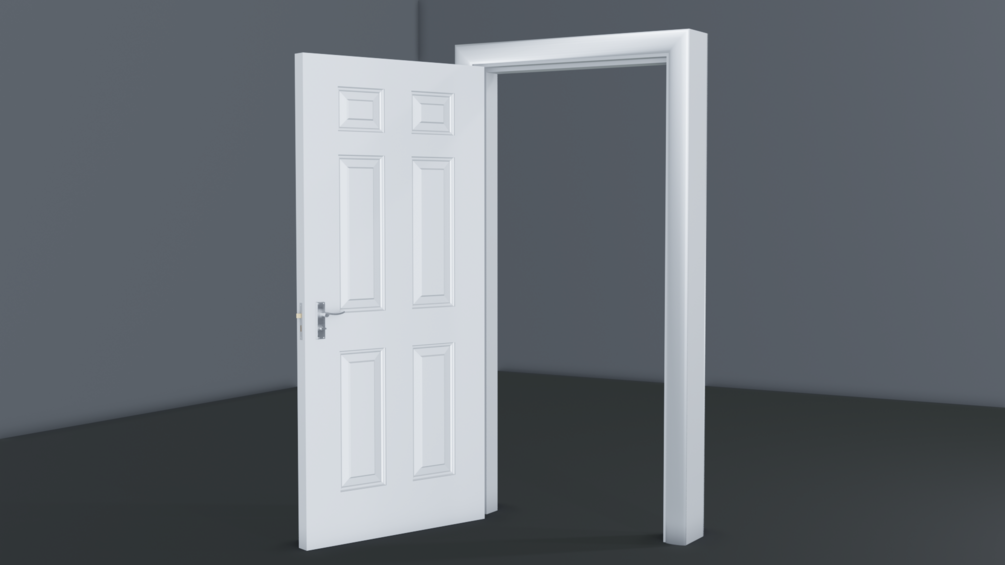

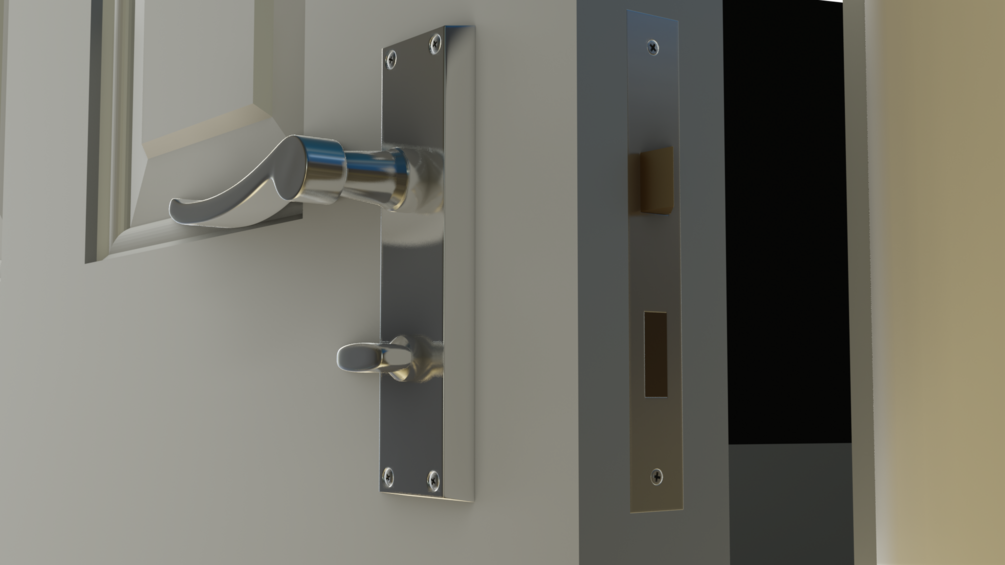

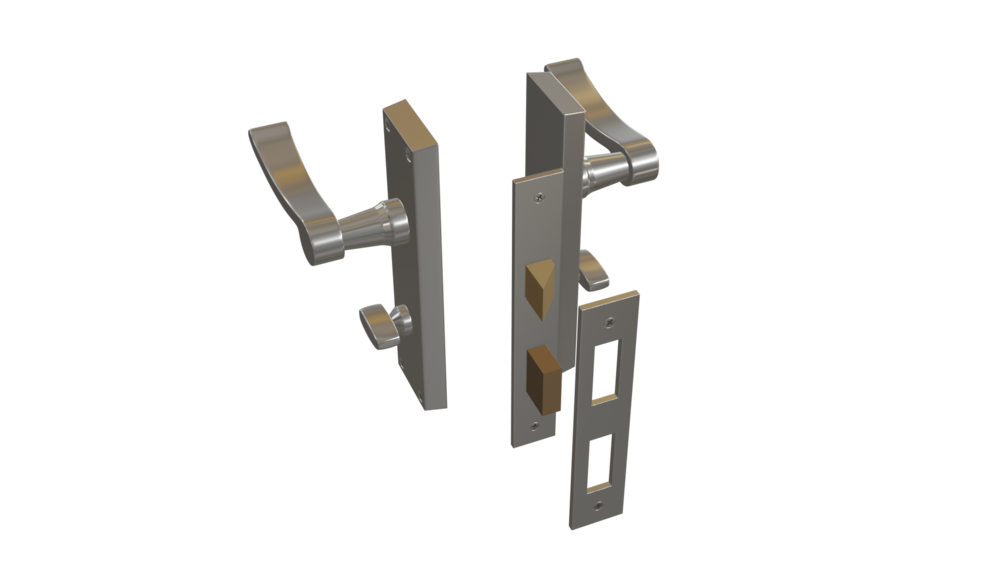

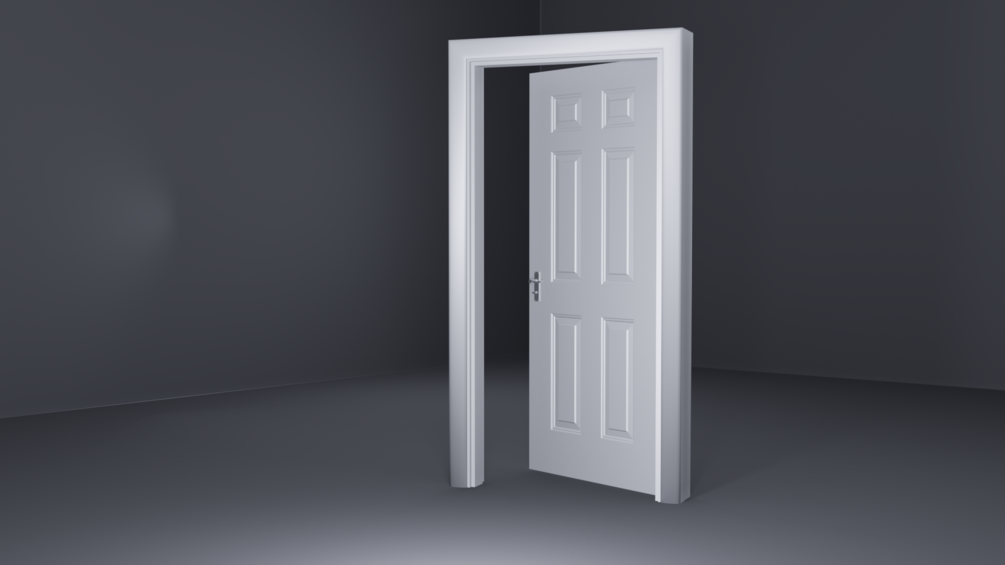

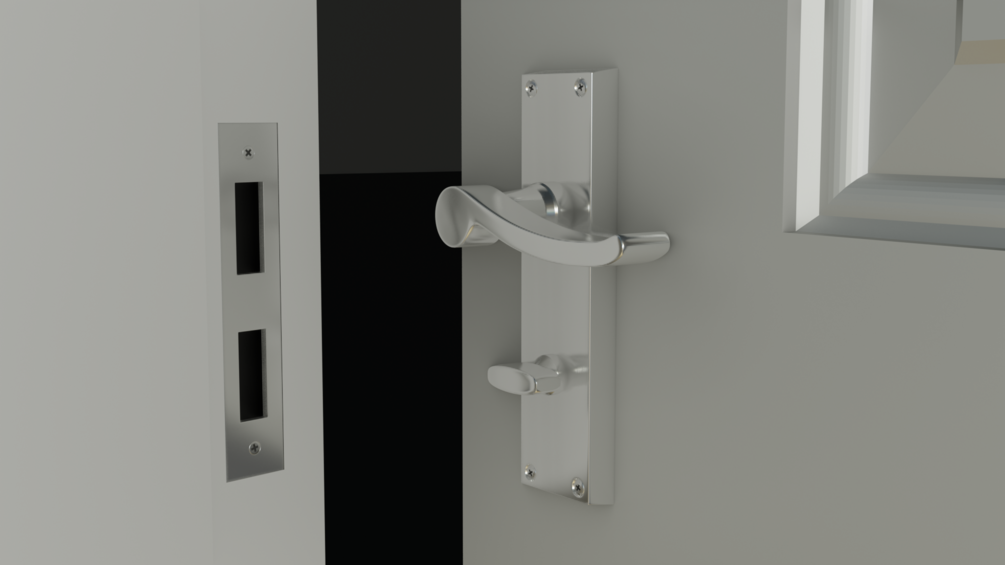

Complete Decorative Door - Modelled both sides, which includes Door, Door Frame & Architrave (and basic wall model to aid with building your own around this model), Handle & Plate with Latch, Dead Bolt & Mechanism, (recessed) Strike Plate & Hinges (functional with animation).

All appropriate parts also include Phillips Head Screws, Dome head on Handle plate (x4x2) and Flat head elsewhere (x3x6, x2x2, for x30 in total).

Very easy to add to your own scene or animation and build out or append in as required.

Door: 2032 x 926mm

Handle: 96mm

Handle (plate): 154mm x 40mm

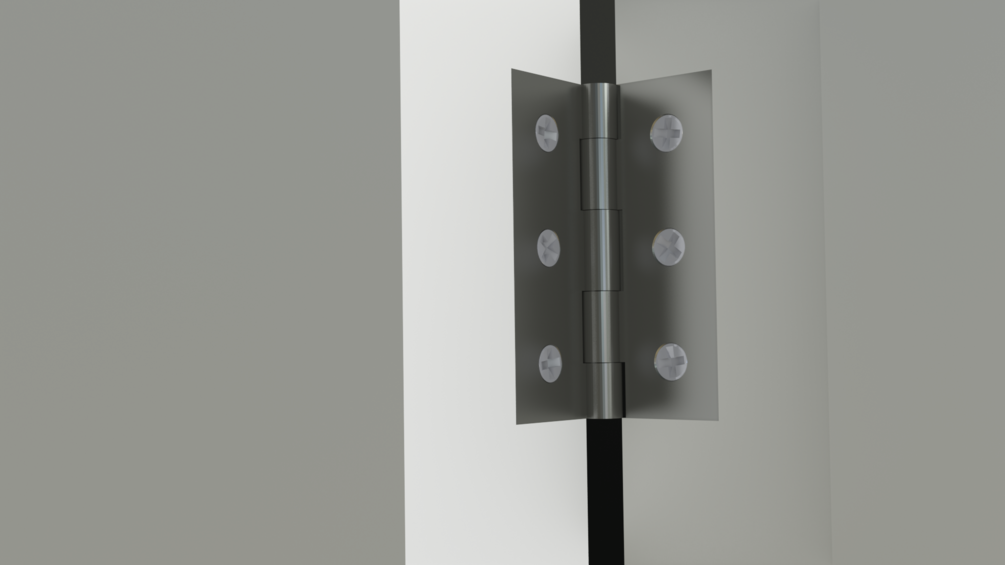

Hinges (x3): 75mm x 36mm

(sizes are close approximates)

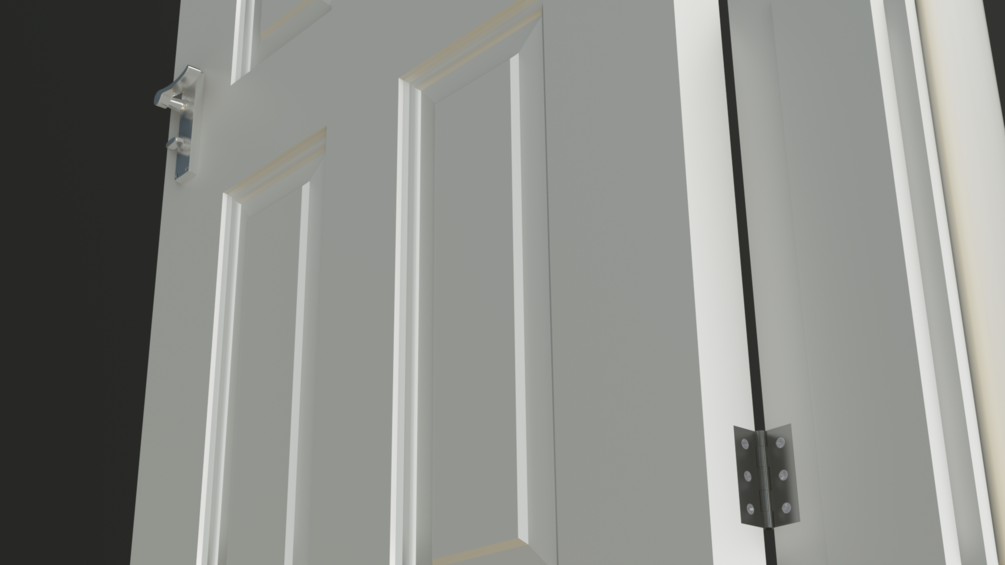

A demonstration animation has also been included, which shows how the handle rotation can withdraw the latch mechanism, and the hinges function to open and close the door.

Great care has been taken when modelling this project and each individual item has appropriate names and collections to quickly get you up to pace with the parts.

Also included is a multipart quick tips Guide to help you quickly understand the model and how to re-establish important Origin Points, should you need to.

The Door, Door Frame & Architrave are standard sizes, but are very easily editable with only minor manipulation - should you wish to tweak or edit these.

Basic Materials are included.

Blender 2.93 project file.

Updated Version Note

• Added Limit Rotation to both Handles and Lock Switches

• Added Transformation for Handle and Lock mechanism

• The above 2 additions result in the handles and lock switches only rotating in their intended (& desired) manner, and turning these will control the appropriate Handle or Lock mechanism - meaning much easier animation or manipulation.

Direct Link: https://exnihilo.gumroad.com/l/iqGGXn
